Product Details
- Size: 2686*1225*2090mm
- Place of Origin: Anhui,China
- Brand Name: VMAX

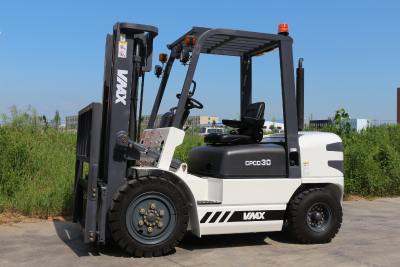

- Model Number: CPCD30
- Weight: 4270.000 kg
| 3T COUNTER BALANCE DIESEL FORKLIFT TRUCK SPECIFICATION | |||
| Model | Unit | CPC30/CPCD30 | |
| Power type | Diesel | ||
| Rated capacity | kg | 3000 | |
| Load center | mm | 500 | |
| Mast Lifting height | mm | 3000 | |
| Free lift height | mm | 175 | |
| Fork size(L*W*T) | mm | 1070×125×45 | |
| Tilting Angles(Front/Rear) | deg | 6°/12° | |
| Front overhang | mm | 485 | |
Exterior Size | Length without fork | mm | 2680 |
| Overall width | mm | 1225 | |
| Mast drop | mm | 2065 | |
| Max.lift | mm | 4250 | |
| Front-wheel Overhead | mm | 2070 | |
| Min Turning Radius | mm | 2420 | |
| Min.intersecting aisle | mm | 2100 | |
Speeds | Max Driving speeds | km/h | 18.5/20 |
| Lifting speeds | mm/s | 470/520 | |
| Lowering speeds | mm/s | 550/520 | |
| Max.grade ability | % | 20 | |
| Total weight | kg | 4300 | |
Tires | Front | 28*9-15-12PR | |
| Rear | 6.5-10-10PR | ||
| Wheelbase | mm | 1700 | |
Tread | Front | mm | 1000 |
| Rear | mm | 970 | |
| Min.ground clearance | mm | 110 | |
Engine | Model | XINCHANG490BPG | |
| Rated output | kw/rpm | 37/2650 | |
| Rated torque | N.m/rpm | 148/1800 | |
| No.of cylinder | 4 | ||
| Displacement | L | 2.54 | |
| Fuel tank capacity | L | 52 | |
