- Size: 2576*1170*2070mm
- Place of Origin: Anhui,China
- Brand Name: VMAX
- Model Number: CPCD25
- Weight: 3680.000 kg
| model | CPC(D)25-X5 | ||
| Power type | diesel | ||
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Mast Lifting height | mm | 3000 | |
| Fork size | Length*Width*Thickness | mm | 1070x122x40 |
| Tilting angles | Front/Rear | . | 6/12 |
| Min. Turning Radius | mm | 2240 | |
| Min. intersecting stacking aisle | mm | 4110 | |
| Min. intersecting aisle | mm | 2010 | |
| Min. ground clearance | mm | 120 | |
| Overhead guard height | mm | 2070 | |
| Front overhang | mm | 465 | |
| Max. driving speeds | km/h | 19 | |
| Max. lifting speeds | mm/s | 550 | |
| Max. grade ability | % | 20 | |
| Length without fork | mm | 2550 | |
| Overall width | mm | 1150 | |
| Max. lift | mm | 4030 | |
| Mast height | mm | 1985 | |
| Tires | Front | mm | 7.00-12-12PR |
| Rear | mm | 6.00-9-10PR | |
| Wheelbase | mm | 1600 | |
| Tread | Front/ Rear | mm | 970/970 |
| Self-possessed | Kg | 3700 | |
| Battery | Voltage/Volume | V/Ah | 12/80 |
| Engine | Model | C490BPG | |
| Rated output | kw/r.p.m | 37/2650 | |
| Rated torque | Nm/r.p.m | 148/1800 | |
| No.of cylinder | 4 | ||
| Displacement | L | 2.54 | |
| Fuel tank capacity | L | 60 | |
STANDARD INSTALLMENT:

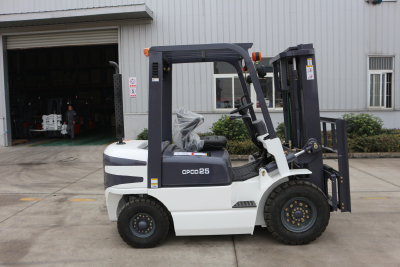

CPCD25: Load capacity 2500kg,hydraulic transmission,3m 2stage duplex mast, China engine C490BPG,
1070mm fork, Electronic gear transmission, key switch,Pneumatic tyres,Safety seat,Free tool box and spare parts.
OPTION:
As a professional manufacturer of forklift, we also can offer you customized service, the following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m
side shifter, fork positioner,longer forks, fork extension
For the details of customized configurations and options, please contact with us. VMAX professional service will be impressed on you.
OTHERS :
A:date of delivery:15-25days after received the deposit
B:payment terms:T/T(30% deposit,balance paid before shipment).Or L/C at sight
C:Guaranty period: one year or 2000hours upon receiving goods.
