Product Details
- Size: 2035*1090*2100mm
- Place of Origin: Anhui,China
- Brand Name: VMAX

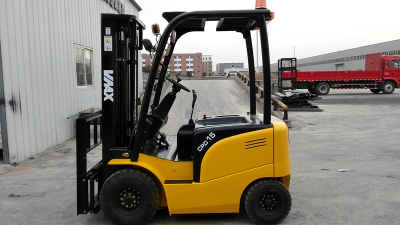

- Model Number: CPD15
- Weight: 3120.000 kg
| 1-3.5ton Electric Forklift | |||||||||
| Main Information | |||||||||
| 1.1 | Manufacturer | VMAX | |||||||
| 1.2 | Model | CPD10 | CPD15 | CPD18 | CPD20 | CPD25 | CPD30 | CPD35 | |
| 1.4 | Power type | car type | car type | car type | car type | car type | car type | car type | |
| 1.5 | Rated capacity | 1000 | 1500 | 1800 | 2000 | 2500 | 3000 | 3500 | |
| 1.6 | Load center | 500 | 500 | 500 | 500 | 500 | 500 | 500 | |
| 2.1 | Operator type | drive in seat | |||||||
| Tire,chassis | |||||||||
| 3.1 | Tire Type | Pneumatic tire | |||||||
| 3.2 | Quantity of wheels (front/rear) | 2 X /2 | |||||||
| 3.3 | Tires size(front/rear) | 6.50-10-12PR/5.00-8-8PR | 7.00-12-12PR/18X7-8PR | 28X9-12PR/18X7-8-14 | |||||
| 3.4 | Driving Brake | hydraumatic pedal | |||||||
| 3.5 | Parking Brake | Mechanical manual | |||||||
| size | |||||||||
| 4.1 | Mast tilt angle | α/β（°） | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 | 6~12 | 6~12 |
| 4.2 | Height of mast (standard) | mm | 1995 | 1995 | 1995 | 1995 | 1995 | 2025 | 2025 |
| 4.3 | Max. lift height of mast with Load-backrest | mm | 4025 | 4025 | 4025 | 4045 | 4045 | 4160 | 4160 |
| 4.4 | Free lift height(standard) | mm | 140 | 140 | 140 | 150 | 150 | 150 | 150 |
| 4.7 | Max.lift height of fork(standard) | mm | 3000 | ||||||
| 4.8 | Front wheel overhead | mm | 2100 | 2100 | 2100 | 2098 | 2098 | 2092 | 2092 |
| 4.9 | Length without fork | mm | 2035 | 2035 | 2035 | 2353 | 2353 | 2507 | 2507 |
| 4.10 | Front overhang | mm | 400 | 400 | 400 | 468.5 | 468.5 | 475 | 475 |
| 4.11 | Rear overhang | mm | 335 | 335 | 335 | 384 | 384 | 432 | 472 |
| 4.12 | Wheel base | mm | 1360 | 1360 | 1360 | 1500 | 1500 | 1700 | 1700 |
| 4.13 | Min. ground clearance | mm | 110 | 110 | 110 | 110 | 110 | 110 | 110 |
| 4.14 | Tread(front /rear) | mm | 912/920 | 912/920 | 912/920 | 970/950 | 970/950 | 1000/970 | 1000/970 |
| 4.15 | Overall width | mm | 1090 | 1090 | 1090 | 1170 | 1170 | 1220 | 1220 |
| 4.16 | Fork size | mm | 1070x122x45 | 1070X122X45 | 1070X122X45 | 1070X125X45 | 1070X125X45 | 1070x125x45 | 1070x125x45 |
| 4.17 | Min. Intersecting aisle | mm | 3797 | 3797 | 3739 | 4040 | 4040 | 4105 | 4105 |
| 4.18 | Min. Turning radius | mm | 1997 | 1997 | 1997 | 2172 | 2172 | 2360 | 2360 |
| Performance | |||||||||
| 5.1 | Max.Drive speeds(with/without full load) | km/h | 13·15 | 13·15 | 13~15 | 12~14 | 12~14 | 14-15 | 14-15 |
| 5.2 | Lifting speeds (with /without full load) | m/s | 240-450 | 240-450 | 240~450 | 320~450 | 320~450 | 300-400 | 300-400 |
| 5.3 | Lowering speeds(with /without full load) | m/s | 480/420 | 480/420 | 480~420 | 476~426 | 476~426 | 260-390 | 260-390 |
| 5.6 | Max. tractive force(with/without full load) | N | 15000 | 15000 | 15000 | 18000 | 18000 | 20000 | 21000 |
| 5.8 | Max.grade ability (with/without full load) | % | 12~15 | 12~15 | 12~15 | 13~15 | 13~15 | 14-15 | 14-15 |
| drive | |||||||||
| 6.1 | Drive motor power | kw | 8 | 8 | 8 | 11 | 11 | 16.6 | 16.6 |
| 6.2 | Lifting motor power | kw | 7.5 | 7.5 | 7.5 | 12 | 12 | 13.5 | 13.5 |
| 6.4 | Level voltage/Capacitance | V/Ah | 48/450 | 48/450 | 48/450 | 48/630 | 48/630 | 80/550 | 80/550 |
| Other | |||||||||
| 7.1 | Drive System | DC/AC | |||||||
| 7.2 | Electrical control system | Curtis from America | |||||||
| 7.3 | Total Weight | KG | 2960 | 3120 | 3200 | 4214 | 4270 | 4950 | 5010 |
- Size: 2035*1090*2100mm
- Place of Origin: Anhui,China
- Brand Name: VMAX
- Model Number: CPD15
- Weight: 3120.000 kg
